| Brand Name : | KEDA / POTENCY |
| Model Number : | HBT90.20.199RS |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 180 units per year |
| Delivery Time : | 20 working days |
7400kg Stationary Concrete Pump 199 Kw Power Open Loop Design Long Service Life

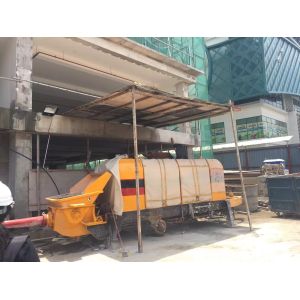

HBT90.20.199RS Stationary Concrete Pump (Trailer Type)
Applications:
Introducing the KEDA / POTENCY Concrete Pump HBT90.20.199RS, a high-quality cement pumping apparatus that is perfect for all your construction needs. Made in CHINA and certified with ISO9001:2015, this product is guaranteed to exceed your expectations in terms of quality, efficiency, and performance. With a minimum order quantity of 1 unit, the price is negotiable and payment can be made through T/T or L/C.
Construction sites: Drag type concrete pumps are widely used in concrete transportation, grouting, and spraying on construction sites, with the advantages of high efficiency, speed, and convenience, which can help workers complete a large amount of concrete work in a short time.
Underground engineering: In underground engineering such as tunnels
and basements, due to the small space and high construction
difficulty, trailer concrete pumps can solve the problem of
concrete transportation caused by factors such as terrain and
landforms.
High rise buildings: In the construction of high-rise buildings,
trailer concrete pumps can greatly improve construction speed and
efficiency, avoiding the high cost and low efficiency of
traditional manual transportation methods.
Infrastructure: In infrastructure construction such as bridges and
water conservancy projects, trailer concrete pumps can
significantly improve construction efficiency and are suitable for
tasks with large quantities and tight deadlines.
Other applications: The mixing and mopping pump can also be used
for transporting green soil, grouting foundation piles, and
transporting silt.
Features
1. Easy to move, strong and flexible
2. Stable and reliable, longer service life
3. Reliable and efficient, saving labor
4. Automatically add water
5. Fuel saving
6. Advanced dual hydraulic system
7. Uniform and stable spraying
8. Long life of mortar piston
9. Reduce pumping resistance
10. Cleaning is safer and faster
Specifications
| Parameter List | HBT90.20.199RS |
| Diesel engine(China Wechai) | 199 |
| Power rotational speed | 2000 |
| Displacement of oil pump | 280 |
Hydraulic cyinder (mm*mm) | φ160*φ110 |
Delivering cylinder (mm) | φ200*1800 |
Theoretical pumping pressure (MPA) | 10/20 |
Theoretical pumping capacity (M3) | 90/50 |
Number of theoretical commutation (min) | 32/17 |
| Max delivering distance Horizontal/Vertical (M) | 960/200 |
Sump (mm) | 140-230 |
Hopper volume(m³)/ Feeding height(mm) | 0.7*1400 |
Total length * width * height (mm) | 6750*1950*3205 |
| Total weight(T) | 7.4 |
|
|
